VORTEX DIAMONDBACK TACTICAL SFP 1″ 4-12×40 VMR-1 MOA

Description

Reviews (0)

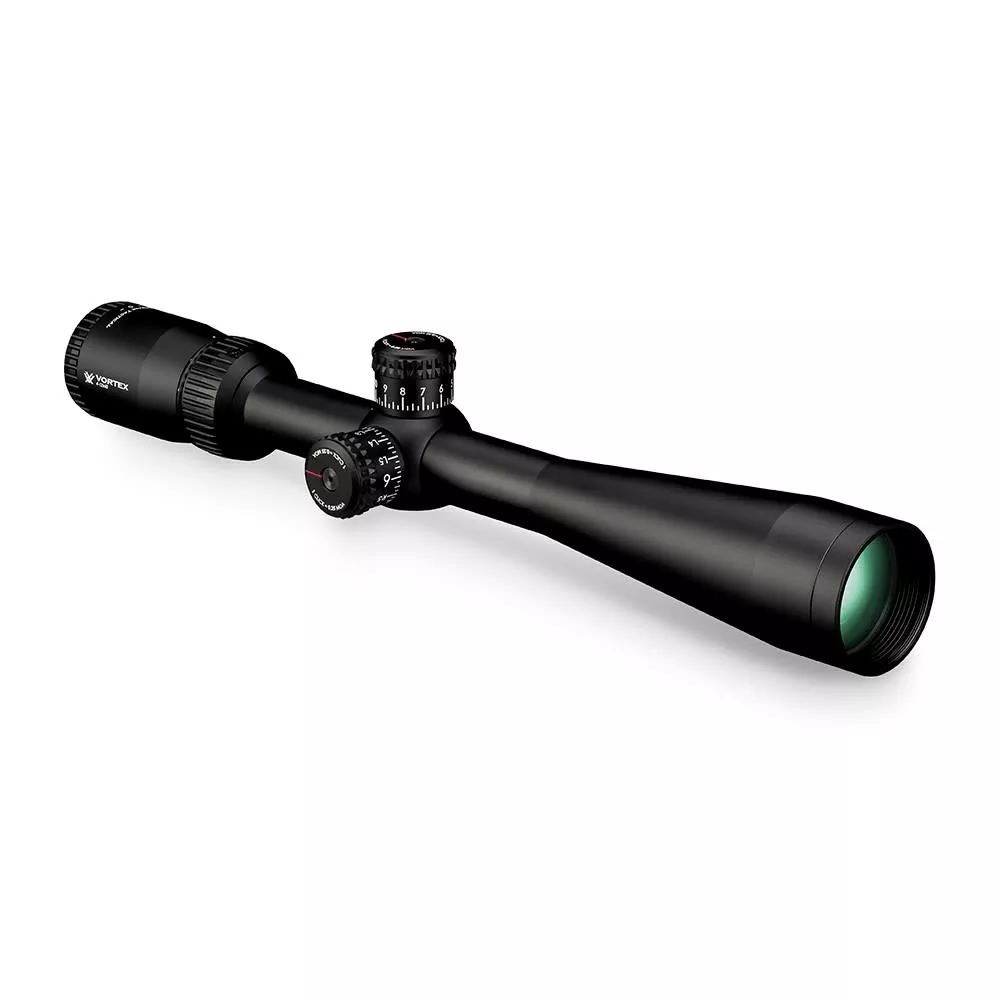

Vortex Diamondback Tactical 4-12×40 Riflescope with VMR-1

VT-DBK-10025

Exposed tactical turrets built for dialing elevation and windage allow quick and precise bullet drop and wind drift compensation at extended ranges. When we say precise, we mean it. These turrets track better than any bloodhound and reliably return to zero every time. A zero-reset feature lets you re-index the zero reference marks on both turrets after sight in, while fiber optic rotation indicators integrated into the turrets provide a visual cue of your turret’s position.

Specifications

SKUVT-DBK-10025Magnification4 – 12Objective Lens Diameter40 mmEye Relief3.8 inchesField of View23.6 – 7.9 feet/100 yardsTube Size1 InchTurret StyleTacticalAdjustment Graduation1/4 MOATravel per Rotation12 MOAMax Elevation Adjustment 70 MOAMax Windage Adjustment70 MOAParallax Setting100 yardsLength14.2 inchesWeight16.2 ouncesRiflescope Manual (.pdf)Download PDFReticle Manual (.pdf)Download PDF



• Lens cloth

VIP Unconditional Lifetime Warranty

LengthsL1L2L3L4L5L614.21.92.15.35.33.6 HeightsH1H21.861.58

Dimensions measured in inches.

Optical Features

XD™ Lens ElementsExtra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.XR™ Fully Multi-CoatedProprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.Second Focal Plane ReticleScale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

Construction Features

Tube Size1 inch diameterSingle-Piece TubeMaximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.Aircraft-Grade AluminumConstructed from a solid block of aircraft-grade aluminum for strength and rigidity.WaterproofO-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.FogproofArgon gas purging prevents internal fogging over a wide range of temperatures.ShockproofRugged construction withstands recoil and impact.Hard Anodized FinishHighly durable low-glare matte finish helps camouflage the shooter’s position.Exposed Tactical TurretsThe Diamondback® Tactical scopes feature tactical windage and elevation turrets with Zero Reset making adjustments back to zero easy and quick.

Internal Mechanism Design Features

Precision-Glide Erector SystemUses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.

Convenience Features

Fibre Optic Radius BarThe patented fiber optic Radius Bar visually assists tracking turret rotations.Fast Focus EyepieceAllows quick and easy reticle focusing.Magnification RibThe raised rib on the magnification ring facilitates fast magnification changes in the heat of action.
