Description

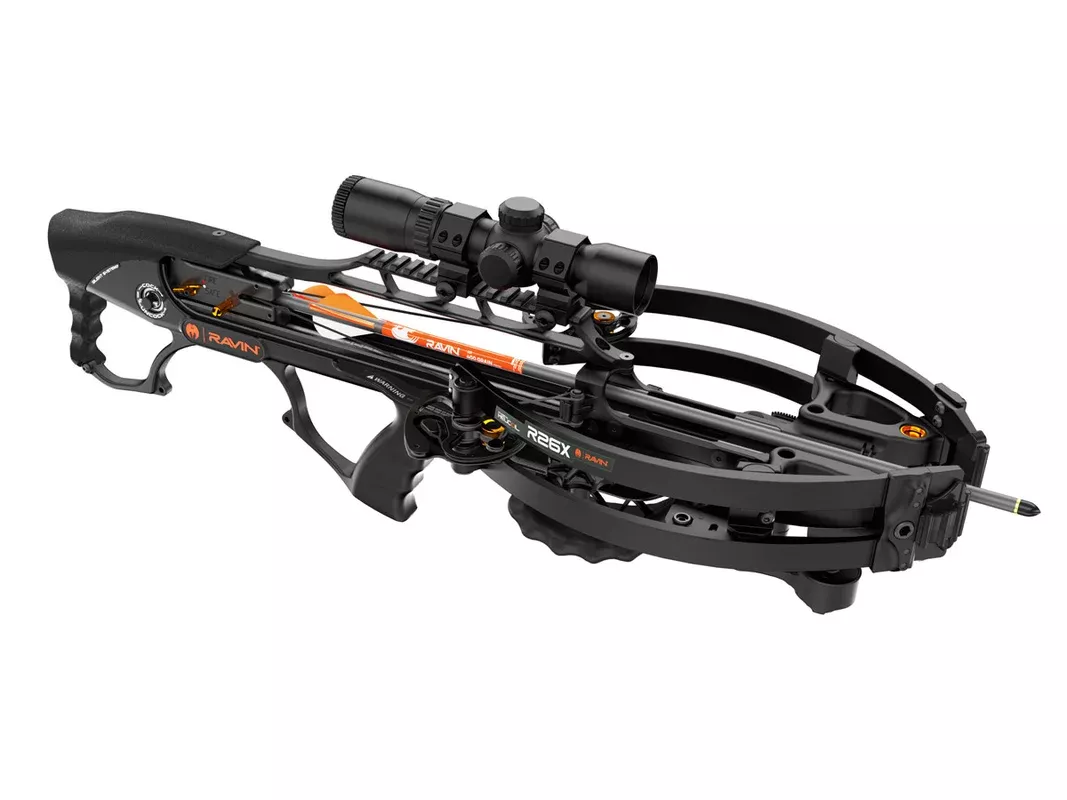

The Ravin R26X Crossbow upgrades the previous entry in the line by adding a built-in Silent Cocking System for the ultimate in ease and stealth. It produces velocities up to 400 FPS and power up to 142 FPE thanks to its 9.5-inch power stroke. The secret to this crossbow’s compact power is the HeliCoil Technology that lets the cams rotate 340 degrees for a small cocked axle to axle width of just 5.75 inches with excellent accuracy.
The Versa-Draw Cocking System and Trac-Trigger Firing System on this crossbow means it only takes 12 pounds of force to cock, and has anti-dry fire technology and consistent accuracy when shot. The package includes a 100-yard illuminated scope, 3-arrow quiver and mounting bracket, and three 400-grain Ravin .003 Arrows with field points. For a ready-to-hunt experience right out of the box, the crossbow is fully assembled and tuned at the factory, so get started on your next hunt and buy a Ravin R26X Crossbow at Pyramyd AIR now.
Helpful resources:
- Learn all about crossbow hunting
Ravin R26X Crossbow
- Up to 400 feet per second
- Up to 142 foot pounds of energy
- Built-in Silent Cocking System
- Includes 100-Yard illuminated scope
- Anti-Dry Fire with auto safety
- Width: 5.75″ axle to axle (cocked), 9.5″ axle to axle (uncocked)
- Power stroke: 9.5″
- Draw force: 12 lbs.
- Overall length: 26″
- Weight: 6.5 lbs.
- Available in Black or XK7 Camo
- Includes removable draw handle, 3-arrow quiver and mounting bracket, 3 Ravin .003 Arrows with field points (400 grain total)
Brand
Ravin
Max Velocity
400 fps
Suggested for
Hunting
Weight
6.5 lbs
Function
Single-shot
Scopeable
Weaver/Picatinny
Safety
Automatic
Trigger
Single-stage
Overall Length
26.0″
Stock
Synthetic
Buttplate
Rubber
Ammunition
Arrows
Grip
Ambi
Color
Black
Axle to Axle Length Cocked
5.75 in
Axle to Axle Length Uncocked
9.5 in
Powerstroke
9.5 in
Grip Orientation
Ambidextrous
Cocking Aid
Crank
Kinetic Energy
142 ft/lbs
Quiver Capacity
3 rounds
Bow/Crossbow Type
Compound Crossbow
Sold With Quiver
Yes
Is Safe To Dry Fire
No
